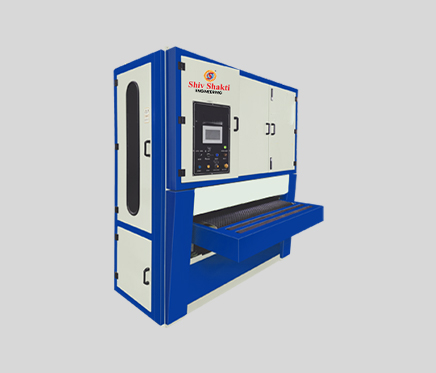

Single Head Calibration Machine

Single Head Calibration Machine

This Calibration Machine Single Head Developed To Produce the UniformThickness Ply With Possibly the Lowest Thickness Variation in 0.05 to 0.15 mm.

  • Working Thickness:   2-55 mm
  • Working Width:   200-1250 mm
  • No. of Heads:   1

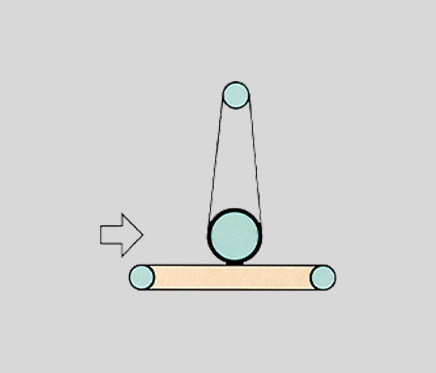

  • Heads Configuration:   R/P
  • TOP - Head 1:   Calibration With Steel Roller (40 HP)
  • Sanding Belt Size: 2620 x 1350 mm
  • Feed Motor:   5 HP
  • Total Power:   45.5 HP
  • Weight:   3800 kg Approx
